JTAG

Reading time : 2 minutes
Published on 22 Jun 2020 - Updated on 05 Dec 2020

JTAG (Joint Test Action Group) is a standard dedicated to electronics system automated testing.

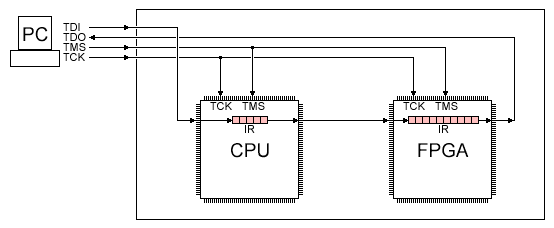

It allows to test all chips that have JTAG functionality with a single test connector. To allow this, all JTAG devices are daisy chained like on the picture below. In reality, there is often one JTAG connector per device because debug tools do not always support chain.

JTAG wiring diagramm

Signals

Following signals are used for JTAG :

  • TMS, (Test Mode Select) Signal to enable JTAG communication
  • TCK, (Test ClocK) Clock signal
  • TDI, (Test Data Input) Data Input
  • TDO, (Test Data Output) Data Output
  • TRST, (Test ReSeT) Optional, allows to reset JTAG Controller, Active low

Following signals are optional :

  • RTCK, (Returned Test Clock) Optional signal, allows to adjust JTAG clock depending on the target
  • NRST, (“Neutral Test Reset) Target reset, often connected to System reset

Connectors

Multiple connectors versions exists depending on debug tools. Most commons are the following

ARM 20 pins

Signal Pin# Pin# Signal
VREF 1 2 VSUPPLY
nTRST 3 4 GND
TDI 5 6 GND
TMS 7 8 GND
TCK 9 10 GND
RTCK 11 12 GND
TDO 13 14 GND
nSRST 15 16 GND
DBGRQ 17 18 GND
DGBACK 19 20 GND

ARM 14 pins

Signal Pin# Pin# Signal
VREF 1 2 GND
nTRST 3 4 GND
TDI 5 6 GND
TMS 7 8 GND
TCK 9 10 GND
TDO 11 12 nSRST
VREF 13 14 GND

MIPS EJTAG

Signal Pin# Pin# Signal
nTRST 1 2 GND
TDI 3 4 GND
TDO 5 6 GND
TMS 7 8 GND
TCK 9 10 GND
nSRST 11 12 NC
DINT 13 14 VREF

Altera Byteblaster 10 pins

Signal Pin# Pin# Signal
TCK 1 2 GND
TDO 3 4 VREF
TMS 5 6 NC
NC 7 8 NC
TDI 9 10 GND

AVR 10 pins

Signal Pin# Pin# Signal
TCK 1 2 GND
TDO 3 4 VREF
TMS 5 6 nSRST
NC 7 8 nTRST
TDI 9 10 GND
